Why one thermostat cannot keep every room in a Waco house comfortable
One thermostat reads one location. In a two story house, or a single story with a long run of duct feeding a back bedroom, that one reading does not describe what the rest of the house feels. The living room satisfies the thermostat while the upstairs bedroom sits ten degrees warmer, and the system keeps running because the sensor it trusts is already comfortable. That gap is what a home zoning system is built to close, using dampers in the existing trunk and branch lines or independent mini split heads to give each area its own setpoint.
The mechanism behind the complaint involves airflow distribution through a duct system that was sized to serve the whole house as one open path. Once a damper starts closing off part of that path during a zone call, the behavior changes fundamentally. Static pressure rises in the sections still open, the blower has to work against more resistance than it was set up for, and a duct that was already close to its rated limit can tip into restriction. That is the fork this page exists to explain before anyone installs a damper.
Restriction shows up first as reduced airflow at the registers in the zone that stayed open, then as a coil running colder than it should. A loaded filter does the same thing on its own, and stacking a poorly planned zone retrofit on top of it compounds the problem. The escalation runs the same direction either way. Airflow drops, the coil temperature falls below what it was designed to hold, ice builds on the coil, and the compressor draws back liquid refrigerant instead of vapor when the system finally shuts off and that ice melts. A compressor that swallows liquid refrigerant on a regular basis is on its way to failing early.
The point to call before that happens is simple to describe. If a zone job was installed without a static pressure reading taken before and after, or if a room has gone from comfortable to marginal since dampers went in, the duct is telling you something about its capacity. Waiting through another summer at near constant runtime does not make that reading better on its own. The duct restriction compounds over time as the blower motor ages and bearing wear reduces the margin that remains between design airflow and actual airflow. What looked manageable in year one becomes a limit you hit every afternoon by year five.
If this sounds close but not quite your situation, how long does an hvac system last may be the better starting point.
Permit and inspection questions? Commercial Construction Permits is the office we coordinate with on every permitted Waco job.
Find the sign you have, then read across to see whether it can wait.
| Symptom or first sign | What is already happening | What it becomes if ignored | When to call |
|---|---|---|---|
| A loaded filter | Airflow drops and the coil runs colder than it was designed | The coil ices over and the compressor takes liquid refrigerant back and fails | This week, while it is still one part |
| A weak run capacitor | The compressor pulls high amps every time it tries to start | The windings overheat and what was a part becomes a whole condenser | Now, the same day |
| A slow refrigerant leak | The system runs longer for less cooling and oil stops circulating properly | The compressor loses lubrication and seizes | This week, while it is still one part |
How we decide whether your duct can carry a zone before we quote one
Before a zone gets designed, the filter, the coil and the return path get checked first, because a duct choked by a dirty filter or an undersized return reads the same on a manometer as one that is simply too small to carry another zone. Once that path is clear, the manometer goes on the air handler to measure total external static pressure across the system as it runs today, before any damper is added. That number gets compared against the maximum static pressure printed on the blower data plate, the ceiling the equipment was built to work against. Reading static pressure before design work starts is what separates a zoning job that holds up from one that gets installed and quietly starves a room months later, once a damper closes and the remaining open path has to carry air it was never sized for.
A reading comfortably under the blower plate maximum means the duct has margin to absorb the resistance a closed damper adds to the branches still open, so zoning can proceed as a controls and damper job. A reading already close to that maximum means the duct is working near its limit under normal single zone operation, and closing off part of it during a zone call will push resistance past what the blower can handle without losing airflow somewhere else in the house. In that case the fix is not a stronger controller, it is enlarging a restrictive section of trunk or adding return air before a damper goes anywhere near that duct. This reading decides whether a zoning quote is a straightforward retrofit or a duct correction project first, and it is the one most often skipped by anyone pricing a zone job over the phone.
Where the static pressure reading shows real margin, zoning through the existing trunk with dampers and separate thermostats per zone makes sense, since the duct already moves enough air and the retrofit only adds control points. Where the duct is undersized, has no practical split point, or serves a room added after the original system was sized, a ductless mini split head for that area avoids fighting the existing duct entirely and gives that room independent capacity without touching total external static pressure on the main system. The choice comes down to whether the duct already has room to work with or would need correction regardless, and that answer comes from the manometer reading rather than from how many rooms are involved.
See vrf system installation for how the related work is scoped and priced.
How a zoning installation runs
First call and on site check
On the phone we ask which rooms run hot or cold, what environmental condition is bothering you, and how we can access the ductwork. That tells us what to bring. On site, we start by checking for blockage in the supply and return paths, since a restricted passage reads the same as undersized equipment until that is ruled out. Then we connect the manometer to the blower unit to read total external static pressure against the data plate rating, before any zone count or damper placement gets discussed.
Approval and damper installation

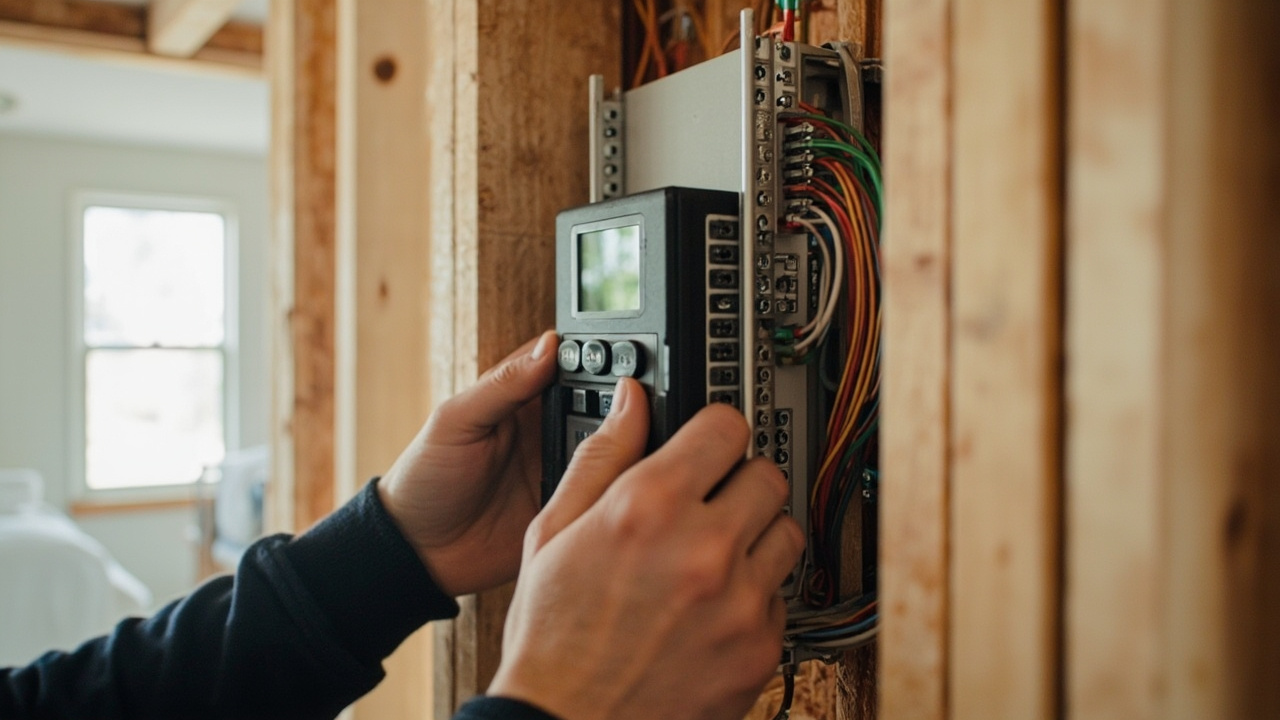

Once the written scope is approved, the system gets shut down at the thermostat and the breaker before any duct is opened. Dampers go into the trunk or branch lines at the split point the load calculation identified, and each zone gets its own thermostat wired back to a control panel or transformer. If the duct behind an access panel turns out thinner or more damaged than the static reading suggested, we stop and show you what we found before cutting further, since that changes the scope.
Verification and handover

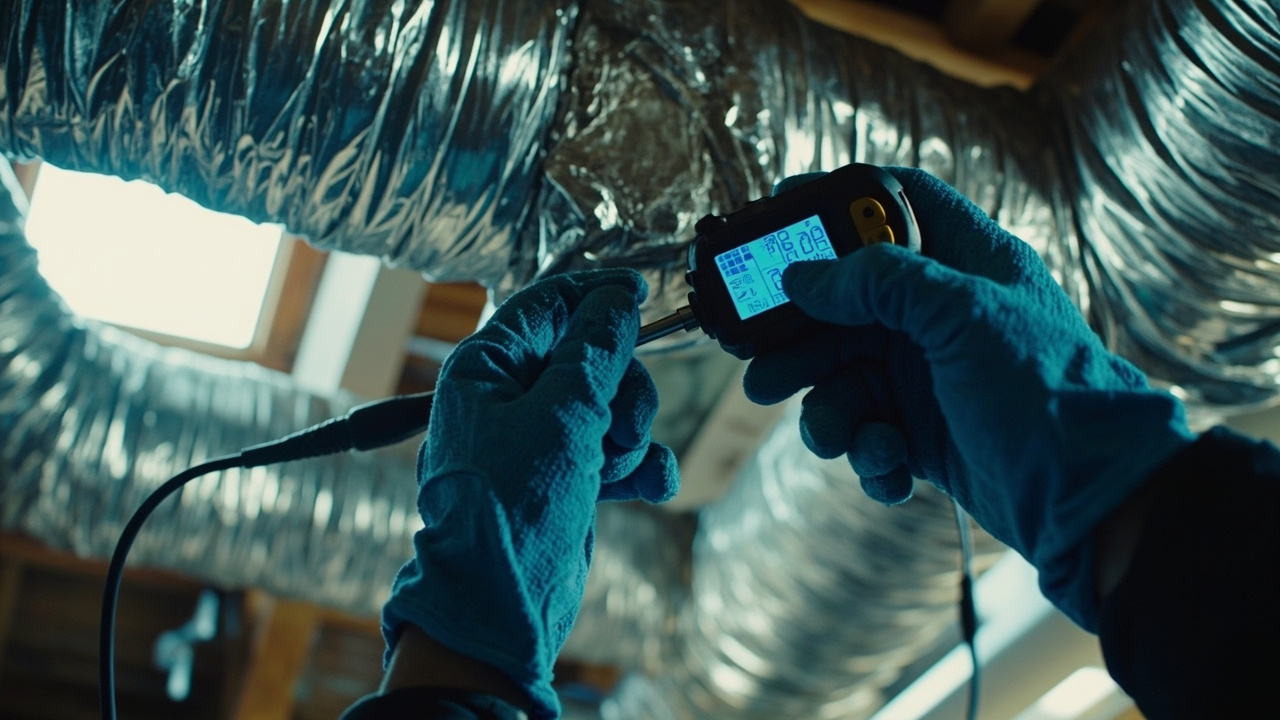

Before we leave, the manometer goes back on the air handler with all zones calling at once, and that reading has to stay at or under the blower plate maximum with dampers cycling. We walk each zone through its thermostat so you see which controller runs which area, and confirm airflow at the registers in every zone rather than just the one nearest the thermostat. You keep the static pressure readings from before and after the install, along with the zone map showing which damper controls which room.
Why zoning starts with a load calculation
A load calculation splits a house by heat gain and heat loss, room by room, using orientation, window area and insulation rather than square footage alone. A crew that skips that step and instead divides a house into zones by counting bedrooms usually ends up with one zone carrying more cooling load than its share of duct can deliver, and the homeowner calls back with the same uneven comfort complaint under a new zone label. The mistake shows up as a callback pattern rather than a one time miscalculation, because the zone count looks reasonable on paper and only fails once summer runtime exposes which branch is undersized.
Response across this part of Texas means covering more than one town in a single day, since calls come from Waco itself and from the smaller cities around it. A zoning assessment that turns up a duct correction takes longer than a straight damper retrofit, so scheduling has to account for that difference rather than treating every zoning call as the same length visit. Equipment and control panels for larger zone counts carry lead time too, and that lead time stacks against the same summer weeks when cooling calls run heaviest and everyone wants a fix before the next stretch of heat.
A zoning bid that names a zone count before a load calculation has been run is a guess dressed up as a quote. The number that should drive the design is the heating and cooling load each area carries, not a flat per room price, and any duct correction the static pressure reading turns up gets priced as its own line rather than folded into a damper count that never accounted for it. Load calculations measure airflow requirements against actual thermal conditions, which is why the assessment comes before equipment sizing and why two houses with the same bedroom count often need different zone configurations to achieve even temperature distribution throughout occupied spaces.
More detail on winterizing your hvac system is on its own page.
What working with us looks like from your side
Scheduling and arrival window
When you call, we ask how many rooms are involved, whether the complaint is temperature or humidity, and whether the duct is accessible from an attic or a crawlspace. That tells us if this is a straightforward damper retrofit visit or a longer assessment that needs the manometer and a load calculation walkthrough. You get a window rather than a vague day, and if the job ahead of yours runs long because a static reading turned up something that needed correcting first, we call and reset the window rather than leaving you waiting.
Protecting your home during work
Zoning work usually means time in the attic or under the floor and openings cut into existing duct for damper installation. Drop cloths go down along the path between the entry point and the work area before anything is cut. Insulation disturbed to reach a duct run gets put back rather than left compressed, and any debris from cutting sheet metal or duct board is bagged and carried out rather than swept into a corner. The last step before we leave is checking the attic hatch or crawlspace access closes the way it did before we started.
What moves zone cost
Controls carry more of the cost variation on a zoning job than most homeowners expect. A basic mechanical damper and single thermostat per zone costs less than a communicating system with a central zoning panel that talks to multiple thermostats and a variable speed blower. More zones means more controllers and more wiring runs. We write the zone count, damper type and control package into a scope you see and approve before installation starts, so the number reflects what your specific ductwork and room layout need rather than a standard package.
How we check the work
A technician working on zoning controls and damper wiring independently has run enough assessment visits alongside a lead to read a static pressure number correctly and know when it calls for duct correction instead of a straight damper install. The lead signs off on that judgment call specifically, since misreading it is the mistake that makes a finished zone job underperform. On any house with an unusual duct layout, a second technician reviews the zone map before controllers get wired in.
You Have Questions,
We Have Answers
Zoning cost depends on zone count, damper type, control package and any duct correction the airflow test turns up. Each added zone brings another thermostat, damper and wiring run, so cost rises with every zone. Round dampers in flex duct cost less to install than rectangular dampers in hard trunk. A ductless mini split head is priced as separate equipment with its own line set and electrical work. Duct enlargement is the largest swing item, so it gets its own line in the scope.
A zoned system pays off in two-story houses, sun-heavy rooms or additions the original duct never served. The gain is a separate setpoint per area, so the unit stops overcooling one floor to satisfy another. Zoning adds little in a compact single-story house with even exposure and a well-sized duct. Rooms that vary by several degrees at the same hour are the clearest sign the investment fits. Rooms within a degree or two of each other rarely justify it.
Most ducted systems accept added zones when the trunk has a usable split point. The blower also needs pressure margin. Dampers install in the trunk or branch lines, each zone gets a thermostat, and a control panel coordinates them. Bypass dampers are an older workaround, but they recirculate conditioned air back to the return and can push coil temperature down. Systems with a single-speed blower have the least tolerance, and a variable speed blower gives the most room to add zones.
Converting to dual zone takes one damper per zone branch, two thermostats and a zone control panel. The split usually follows floors or a wing of the house that runs on its own trunk. Most single-speed equipment handles two zones only if the smaller zone is not tiny, because a very small zone pushes high airflow through few registers. That raises velocity noise and can freeze the coil. Panel wiring also needs a compatible transformer for the added damper motors.
Ductwork handles dampers when measured static pressure stays well under the maximum printed on the blower data plate. Duct that is round, straight and generously sized usually tolerates closure better than long flex runs with tight bends. Look at the supply plenum for a rust stain or a rattling panel, which often points to pressure already running high. Return air matters as much as supply, so one small return grille serving a large system is an early warning that zoning will starve airflow.
The upper floor gains more heat because the attic absorbs sun through the roof deck. Cool air is also denser, so it drains toward the lower level and the thermostat there reads satisfied early. Long flex branches, leaky duct joints in an unconditioned attic and a return located only downstairs widen the gap. A supply register with weak airflow points to a duct issue. A strong register with warm air points to a load issue.
Attic time runs from a few hours for a two-zone damper retrofit to most of a day. Longer jobs involve enlarging duct sections or adding a return. Attic work is scheduled for the morning because attic air temperature climbs quickly once the sun heats the roof deck. Each extra damper adds wiring through insulation and a sealed collar connection. A house with an unusual layout adds time for the zone map review. The scope you approve shows which case applies.
Photograph or write down the model and serial plate on the furnace or air handler. Blower size sets the pressure limit. Note which rooms miss the thermostat setting, at what hour, and by roughly how many degrees. Check the filter date and locate the attic hatch or crawlspace access so nothing blocks the duct path. Find any earlier duct changes or added rooms, and note whether the return grilles are in one place or several. Those details narrow the visit type.
Granite HVAC Waco suits zoning work because it reads static pressure at the air handler before designing any damper. Zone count follows a room by room load calculation instead of a bedroom count. The post install reading is taken with all zones calling at once, and you keep both readings along with the zone map. Phone (254) 221-8461 to talk through your hot rooms, and the technician will explain which assessment visit fits your house.
Why Waco's climate and housing stock change how zoning gets built
Waco's cooling season runs from spring through October with peak load in July and August, so a zoned system here spends more hours per day working against outdoor heat than in a shorter season climate. That long runtime exposes any duct restriction faster, since a marginal static pressure reading that would go unnoticed with light use turns into a real airflow problem after months of near constant operation. Local housing stock adds another variable. Homes with ducts run through attics carry summer heat into the duct itself, adding load the equipment has to work against before air even reaches the register, and expansive clay soil in the area shifts slabs and foundations enough over time to stress rigid duct connections and refrigerant line sets in a zoned mini split installation.
Residential HVAC modifications in McLennan County, including new control wiring and duct changes for zoning, typically fall under inspection for the mechanical and electrical work involved, with the final determination on what needs a permit left to the local authority. That inspection generally looks at damper wiring, control transformer sizing and duct penetrations rather than the zone design itself, which is why the load calculation and static pressure numbers matter more for how well the system performs than for what an inspector checks. Knowing that ahead of time changes how we sequence a job, since electrical work for a zoning panel gets scheduled to be visible and accessible rather than buried behind finished insulation before anyone signs off on it. We plan install visits around inspection windows to avoid rework.
