What a struggling outdoor unit is usually telling you
When the outdoor unit starts humming or clicking and then goes quiet, or the compressor tries to start and the breaker trips, the unit is telling you it cannot pull the current it needs to turn over. Some homeowners describe it as the system running all day without ever catching up, air coming out the registers only lukewarm while the outdoor fan struggles to keep spinning. Both point to the same place, the electrical and mechanical load the compressor is under before refrigerant even enters the picture.
Hail is part of what makes this common in Waco. A storm that flattens the fins across the condenser coil cuts the surface area the outdoor unit needs to reject heat, so the compressor works against higher head pressure every time it runs. Combined with a Waco summer that keeps the unit cycling for hours at a stretch, that added resistance is what pushes a marginal capacitor past the point where it can still deliver a clean start. The fins bent inward trap warm air against the coil instead of releasing it to the atmosphere, forcing the compressor to work harder against the buildup.

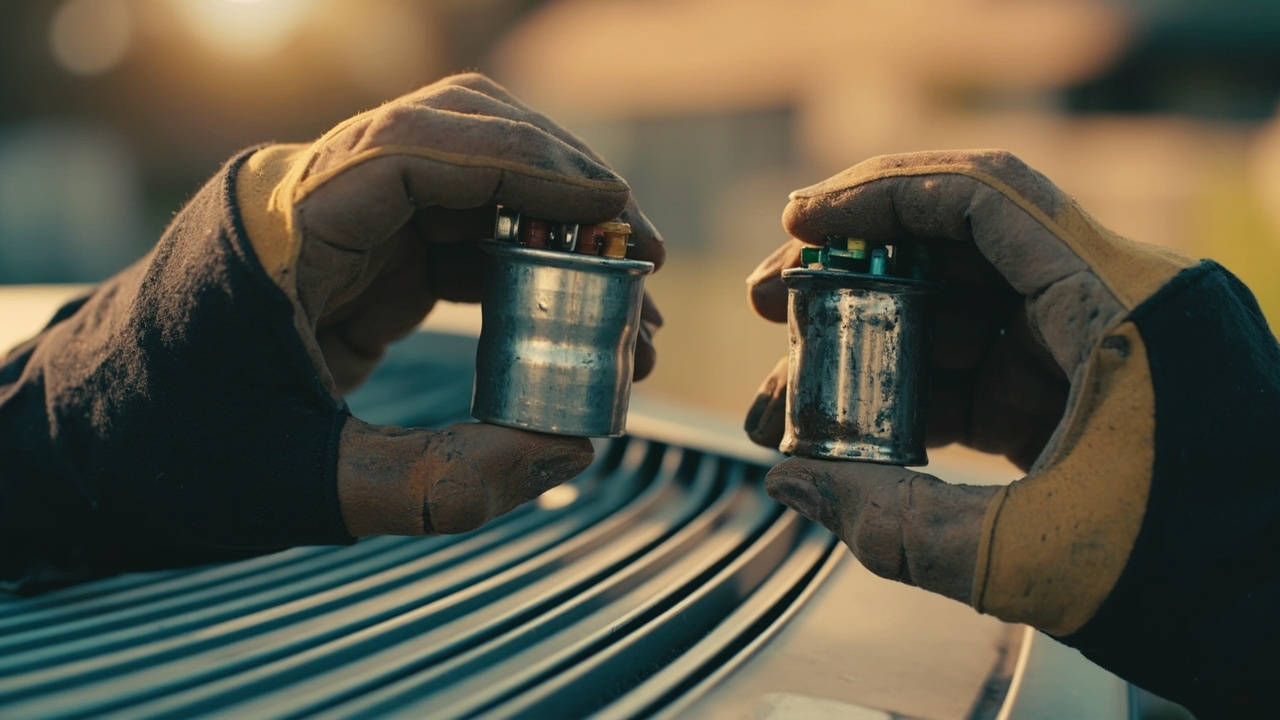

A weak run capacitor is usually where this starts. It cannot hold the charge needed to kick the compressor into a smooth start, so the compressor pulls high amps on every attempt. Those high draws heat the windings a little more each cycle, and once the insulation on those windings breaks down, what would have been a capacitor swap becomes a compressor that has to come out with the rest of the condenser. That is the point where waiting costs the most, when the breaker has already tripped more than once and the unit keeps getting reset and tried again. The temperature at the compressor terminals rises with each failed start cycle.
Not every warm house is a breakdown. A system that runs constantly but never quite reaches the setpoint, or that cools evenly downstairs and lags upstairs, is usually an airflow or duct problem rather than a failing part, and swapping a part will not touch it. A blocked filter, a closed damper, or flex duct kinked inside the attic will produce the same symptoms of weak cooling without putting any strain on the compressor itself. Separating those two calls before a truck rolls is most of what the first phone call is for, because the diagnosis determines whether the fix is electrical, mechanical or structural to the ductwork.
See air duct cleaning for how the related work is scoped and priced.
The U.S. Department of Energy's home heating and cooling guide explains the efficiency math behind our recommendations.
Find the sign you have, then read across to see whether it can wait.
| Symptom or first sign | What is already happening | What it becomes if ignored | When to call |
|---|---|---|---|
| A weak run capacitor | The compressor pulls high amps every time it tries to start | The windings overheat and what was a part becomes a whole condenser | Now, the same day |
| A plugged condensate drain | The pan overflows into the platform or the ceiling | The ceiling below stains and the rusted secondary pan lets the rest through | Soon, before it spreads past the repair |
| A coated flame sensor | The burner lights and drops out again and again | The board locks out on repeated trials and the house goes cold overnight | At the next visit, while the fix is small |
| A slow refrigerant leak | The system runs longer for less cooling and oil stops circulating properly | The compressor loses lubrication and seizes | This week, while it is still one part |
The order we check things in, and why airflow comes first
Every AC repair call starts the same way, with the parts that are easiest to overlook. We look at the filter, the coil, and the return path first, because restricted airflow can mimic a refrigerant problem before any refrigerant issue is even present. From there we measure total external static pressure with a manometer and compare it against the number stamped on the blower data plate, since a duct or coil that is choking airflow will not respond to any refrigerant fix. Only once airflow is confirmed does the temperature split across the coil get measured, taken in the duct on both sides rather than at a register, and only then do superheat and subcooling readings from the gauges mean anything against the target on that unit's own chart.
When the complaint is a tripped breaker or a unit that hums and will not start, the clamp ammeter goes on the compressor and the blower before anything else gets touched. Running amps get checked against the rated load amps stamped on the data plate, and a brief spike toward locked rotor on start points at a failing capacitor, contactor, or compressor. We check the capacitor first, because a weak capacitor can make a sound compressor look like it is failing, and replacing the cheaper part first is what keeps a repair from turning into a replacement it did not need to be.
Where staging fits into this is in how the compressor spends its hours, not in the number on the sticker. A single stage condenser runs at full output or not at all, a two stage condenser drops to a lower stage for most of the runtime, and a variable capacity unit adjusts output continuously to match the load. Buyers read this as the SEER2 rating on the sticker, but what it changes is how many hours a day the compressor runs at reduced load, how much humidity gets pulled out at that lower speed, and how loud the unit is in decibels while it does it. A house that runs long and humid through a Waco summer feels the difference in staging before it feels the difference in the rating on the nameplate.
The choice between these configurations shapes the comfort profile of your home month to month. A variable capacity system ramps down on mild days and overnight, when the load is low, which means the indoor humidity stays closer to the 50 percent mark than it does with a single stage unit cycling on and off. At night in a house with proper staging, the compressor runs slower for longer, and the thermostat does not swing the temperature up and down between cycles. That stability carries through the shoulder seasons when a traditional system would be oversized for the actual load.
More detail on boiler repair & installation is on its own page.
The EPA's indoor air quality resources are the reference we point customers to on ventilation and filtration questions.
Narrow this to two options before calling, then ask which one suits the house.
| Option | The numbers a buyer weighs | Best suited to |
|---|---|---|
| Single stage against two stage against variable capacity cooling | Compared on the SEER2 efficiency rating | Two story homes that never feel even |
| Ducted system against ductless mini split | Mini splits are rated per indoor head | Additions and rooms the ducts never reached |
| Packaged rooftop unit against a light commercial split system | Compared on tonnage per cabinet | Commercial buildings on a capital plan |
| Heat pump against gas furnace | A heat pump is rated on HSPF2 and its output falls as the outdoor temperature drops | Climates where the winter low decides the choice |
| Filtration choice | Compared on MERV rating against pressure drop | Allergy households with duct that can take it |
How an AC repair call runs
The call and the first check
On the phone we ask what the unit is doing, whether it is tripping the breaker, how long it has run this way, and the system's age if you know it, which tells us whether this is a same day visit or a scheduled one. On site, the filter, coil, and return path get checked first, since restricted airflow can look like a refrigerant problem. Static pressure gets measured against the blower data plate next, before any gauge goes on the system, because that order is what keeps the diagnosis honest.
What happens once you approve it
Once the scope is approved, the system gets shut off at the disconnect before any panel comes off. We attach the clamp ammeter to the compressor and blower to confirm the fault, and if a capacitor or contactor is the cause, that part gets replaced and the amp draw gets rechecked immediately. If the coil or refrigerant circuit is involved instead, we stop and show you what the readings mean before going further, since that is a different scope than a part swap.
What we check before we leave
Before the visit ends, the clamp ammeter goes back on the compressor and blower and has to read at or below the nameplate specification, with no spike toward locked rotor on restart. We walk you through what the reading showed and what it ruled out, and you keep the written scope with the reading recorded on it, which is worth having if the same unit acts up again later in the season.
Why Waco summers change what a repair crew should check first
A crew that does not work in this part of Texas regularly can miss what a Waco summer does to a system long before it fails outright. Months of near constant runtime put more hours on a capacitor and contactor here than the same equipment sees in a milder climate, so a component that still tests within range in April can be the one that trips a breaker in July. Judging a system's condition on a single visit outside of peak season misses that wear pattern entirely.
Hail is the other condition that gets missed. A storm that bends the fins across a condenser coil does not always stop a system from running, it just cuts the surface area the coil has to reject heat, so the unit keeps working under higher head pressure until something else gives out. A crew that only checks whether the unit starts and cools can walk past bent fins and repair the part that failed because of them without ever addressing why it failed in the first place.
The clay soil under most of the county shifts with the weather, swelling when it is wet and cracking in drought, and that movement tilts outdoor pads and stresses the line set and condensate connections at the wall penetration over the years. A repair that ignores a pad that is no longer level is a repair that gets revisited within a season or two. Checking the pad and the line set connections while the panel is already off costs a few minutes and avoids a second visit for a problem that was sitting in plain sight the first time.
During the months when highs sit in the mid to upper nineties, the same conditions that wear out capacitors also push call volume up across the county at once. A crew that has not seen that pattern before spends its first visit diagnosing what a crew that works this heat every year would recognize walking up to the unit.
If this sounds close but not quite your situation, ac installation & replacement may be the better starting point.
Permit and inspection questions? Commercial Construction Permits is the office we coordinate with on every permitted Waco job.
What working with us on a repair call looks like
Getting someone to your door
When you call, we ask what the outdoor unit is doing, whether the breaker has tripped once or repeatedly, and how long it has been happening, which sorts same day calls from ones that can wait a day or two. You get a window rather than an exact time, since the visit ahead of yours can run long if a coil or refrigerant issue turns up mid diagnosis. If the day shifts, we call before the window closes rather than after, so you are not left waiting past when we said.
Keeping your home clean
Before a panel comes off the air handler or the outdoor unit, we lay down a drop cloth to catch loose fasteners and coil debris. Parts that come out, old capacitors, filters, coil fin material, go into a bag rather than sitting on the ground near the unit. Once the amp reading confirms the fix, panels go back on and screws get reseated before we leave, so the outdoor pad and the space around the air handler look the way they did before the truck showed up.
What moves the price
Repair cost moves on a few things. Whether the fault is a part like a capacitor or contactor versus a sealed component like the compressor or coil moves it the most. A full recharge because a leak was found, rather than a straight part swap, adds to it. Calling during the first stretch of mid to upper nineties heat, when every AC unit in the county is under the same load at once, can mean an after hours rate and a longer wait for parts, while calling in a milder week usually means a same day slot and a shorter list ahead of you.
Who shows up at your door
A new technician rides along on a set number of calls with a lead before working alone, and has to demonstrate a clean capacitor swap and a correct amp reading before that sign off happens. On anything where the amp reading does not clearly point to one part, or where a coil or refrigerant issue is involved instead of a straightforward electrical fault, a second technician looks at the readings before we write the scope, so the diagnosis is not riding on one person's read of the gauge.
You Have Questions,
We Have Answers
Cost depends mostly on which component failed and how hard it is to reach. A run capacitor or contactor sits at the low end, while a compressor, evaporator coil or condenser coil sits at the high end because those parts are sealed and labor-heavy. Refrigerant type matters too, since R-410A costs more per pound than older refrigerants and a leak search adds diagnostic time. Access also counts: an attic air handler in summer takes longer than a ground-level unit. Ask for the scope in writing before approving any work.
Dirty or restricted airflow is the most common air conditioner problem, followed closely by failed run capacitors. A clogged filter or a coil coated in dust drops airflow across the evaporator, and when airflow falls far enough the coil surface can drop below 32 degrees and freeze into a block of ice. Capacitors weaken gradually as heat degrades the dielectric inside them, so a unit may start slowly for weeks before it quits. Both problems are cheap to fix early and expensive once a compressor or coil is damaged.
Restricted airflow, a frozen evaporator coil, low refrigerant charge or a dirty outdoor coil usually explains it. Check the supply air first. If it feels weak, look for a clogged filter or ice on the copper suction line at the outdoor unit. Ice means shut the system off and let it thaw for several hours before restarting, since running a frozen coil floods liquid refrigerant back toward the compressor. If the air is strong but only lukewarm, the fault is more likely charge or heat rejection.
Stop resetting it after the first repeat trip, because each attempt sends locked rotor current through the compressor windings. That surge is several times the normal running draw and it heats the insulation on the windings a little more each time. Breakers also age, and a breaker that trips at normal load can be the failing part, though only a meter can tell those two causes apart. Switch the thermostat to off, leave the breaker off, and have the amp draw measured before another start.
Yes, bent fins shorten compressor life when they restrict airflow through the condenser coil. Less airflow means the refrigerant condenses at a higher temperature, so discharge pressure and compressor amp draw both climb on every cycle. The damage often goes unnoticed because the unit still cools on mild days and only struggles at peak load. Light bending can be combed straight with a fin comb, but crushed or flattened sections permanently lose surface area and may need a coil replacement if head pressure stays high afterward.
Most straightforward electrical repairs take about one to two hours on site. That covers the airflow check, the electrical measurements, the part swap and a recheck of amp draw. A capacitor or contactor replacement sits at the short end. A refrigerant leak search, a coil replacement or a blower motor swap stretches the visit, because the system has to be pumped down, repaired, evacuated and recharged. Parts that are not on the truck can turn one visit into two, particularly when a specific motor or coil model is needed.
Repair makes sense when the fix is a low-cost part and the system's capacity still suits the house. Replacement earns a closer look when a major sealed component has failed on a unit that uses R-22 refrigerant, since that refrigerant is no longer produced and is expensive to obtain. A common rule of thumb multiplies repair cost by the unit's age in years and compares the result against replacement cost. Repeated breakdowns in one season also point toward replacement, because the remaining parts have carried the same wear.
Have the unit's model and serial number ready, both printed on the data plate on the outdoor cabinet. Also note the thermostat setting, the temperature it reads, and whether the indoor blower is moving air. Tell us if you see ice on the refrigerant lines or water around the indoor unit, since either one changes the urgency. Keep the make, the approximate install date and any earlier repair paperwork nearby too, because that history helps narrow which parts are worth checking first.
Granite HVAC Waco is a strong choice for AC repair because of its diagnostic order and its technician training. Airflow gets confirmed with a manometer before any refrigerant gauge connects, and compressor amp draw is verified before a part gets named. Newer technicians work alongside a lead until they can demonstrate a clean capacitor swap, and ambiguous readings go to a second technician before the scope is written. Call (254) 221-8461 and describe what your unit is doing right now.
Why Waco's cooling season decides more than the repair itself
Waco's cooling season opens in April or May and runs through October, with peak load in July and August pushing highs into the mid to upper nineties. A system that is undersized, poorly sealed, or running on a weak capacitor does not just get less comfortable during that stretch, it runs longer to chase the same setpoint, and the electric bill reflects every extra hour of runtime a struggling component adds. The length of the season is what turns a small fault into a summer long expense rather than a one time repair.
Deciding whether a repair is enough or a load calculation says the system needs to change comes down to more than the outdoor unit's age. Square footage, insulation, how much sun the house takes on through the day, and how many people are usually home all factor into what the manual J load calculation says the equipment should be able to do. A repair that restores a system to its original capacity is the right call when that capacity still matches the house, and timing that decision correctly during the season, rather than after a second breakdown, is what keeps the cost from compounding.
