What it means when the system starts, stops, and starts again
A cooling system that satisfies the thermostat is supposed to run fifteen to twenty minutes at a stretch before shutting off. Short cycling looks different. The compressor kicks on, runs five or ten minutes, shuts down, and starts again a short while later, sometimes with the house still warm and often with the air still feeling damp. On a furnace it shows the same pattern in reverse, a burner that lights, runs briefly, drops out, and tries again. That repeated startup sound, more than the total runtime, is what tells you this is short cycling rather than a system doing its job.
The reason it matters is not just noise. Every start pulls a surge of current through the compressor or the inducer motor, and a system that never completes a full cycle never finishes pulling moisture out of the air either, which is why the thermostat can read satisfied while the house still feels clammy. In a Waco summer, where the cooling season runs from spring into October and the equipment is asked to run for hours at a stretch on the hottest days, a unit that is already cycling short at seventy degrees outside will cycle harder once the afternoons hit the mid to upper nineties. The electrical stress compounds across the warmer months.
Most homeowners assume the fix is a new thermostat or a shot of refrigerant. Often it is neither. A system that is the wrong size for the house, or a system fighting restricted airflow, both short cycle even when every part inside them is healthy. That distinction, sizing fault against operational fault, is the whole diagnosis, and it starts with a reading rather than a swap. The compressor displacement, the blower speed and the static pressure across the filter all tell the story before any parts come apart.
The point where this stops being something to watch and starts being something to call about follows one path. A loaded filter restricts airflow, the coil runs colder than it was built to run, ice forms across the coil face, and the compressor pulls liquid refrigerant back into itself instead of vapor. That is the failure a short cycling complaint is often already halfway into, and it is why the check starts at the filter and the airflow path before anything else gets touched. Liquid slug damage is one of the hardest failures to recover from once the refrigerant has cycled through the compressor in the wrong state.
If this sounds close but not quite your situation, strange hvac noises may be the better starting point.
Permit and inspection questions? Commercial Construction Permits is the office we coordinate with on every permitted Waco job.
How we tell a sizing problem from a repair
The sequence starts at the filter, the coil face and the return path, because a cooling load that cannot pull enough air through the coil will short cycle even behind a healthy compressor. Once the return side is confirmed clear, static pressure against the blower's data plate shows whether the duct itself is the limiting factor before a single refrigerant reading gets taken. Only after airflow is cleared does the delta T reading across the coil mean anything, since a normal temperature split behind a restricted duct is coincidence rather than proof the system is working correctly.
A delta T that lands close to the equipment's normal range on a short run points at a sizing or staging fault, the unit has more capacity than the house needs and reaches setpoint before it has run long enough to pull the humidity out of the air. A split well outside that range points the other way, toward a charge or airflow fault that gauges and a clamp ammeter sort out from there. Superheat and subcooling get read next if the delta T alone does not explain the pattern, and amp draw on the compressor confirms whether a start pulls current the way the data plate expects.
This is where staging outweighs the efficiency number on the sticker. A single stage condenser has one output and one way to satisfy the thermostat, so an oversized single stage unit reaches setpoint fast and shuts off before the coil has removed the moisture load, which is the short cycling pattern itself. A two stage or variable capacity condenser can hold its low setting for most of the day, running a longer, gentler cycle that pulls more moisture per hour and produces the even, quiet house a lot of callers describe wanting rather than the on off pattern they are calling about. That runtime difference, not the rating on the box, is what decides whether staging solves a sizing complaint.
See after-hours hvac service for how the related work is scoped and priced.
We install and service major brands like Carrier and register every unit to manufacturer specifications.
Ask which of these readings was taken before any part is replaced.
| Instrument | Good reading | Bad reading | What it changes |
|---|---|---|---|
| Two probes for delta T between return and supply air | A 16 to 22 degree drop across the coil in cooling at normal indoor humidity | A small drop means airflow or charge is wrong | An unusually large drop means the coil is being starved of air |
| Flame sensor signal check in microamps | A steady signal well above the control board dropout point | A weak or drifting signal | The sensor is coated and the burner will drop out |
| Manometer for total external static pressure across the air handler | Static pressure at or under the maximum printed on the blower data plate | Static above the rating | The filter, the coil or the duct is choking the system |
| Micron gauge during evacuation | Below 500 microns and holding there after the pump is valved off | A reading that climbs back up | Moisture is still boiling off inside or the system is not sealed |
| Manifold gauges with superheat and subcooling readings | Superheat and subcooling both landing in the range the equipment maker specifies for that metering device | High superheat with low subcooling | An undercharge or a restriction rather than a weak compressor |
How a short cycling call runs
Observation and first checks
We start by timing the cycle ourselves, how long the compressor runs and how long it sits off, over roughly an hour if the schedule allows it, because a homeowner's sense of the pattern and the actual timing sometimes differ. The filter, the coil face, and the outdoor condenser get checked for obstruction or frost while that clock runs. This gives us a real number for the complaint instead of a description of it, and it rules out the simplest cause before anything gets taken apart.
Measurement and the fork

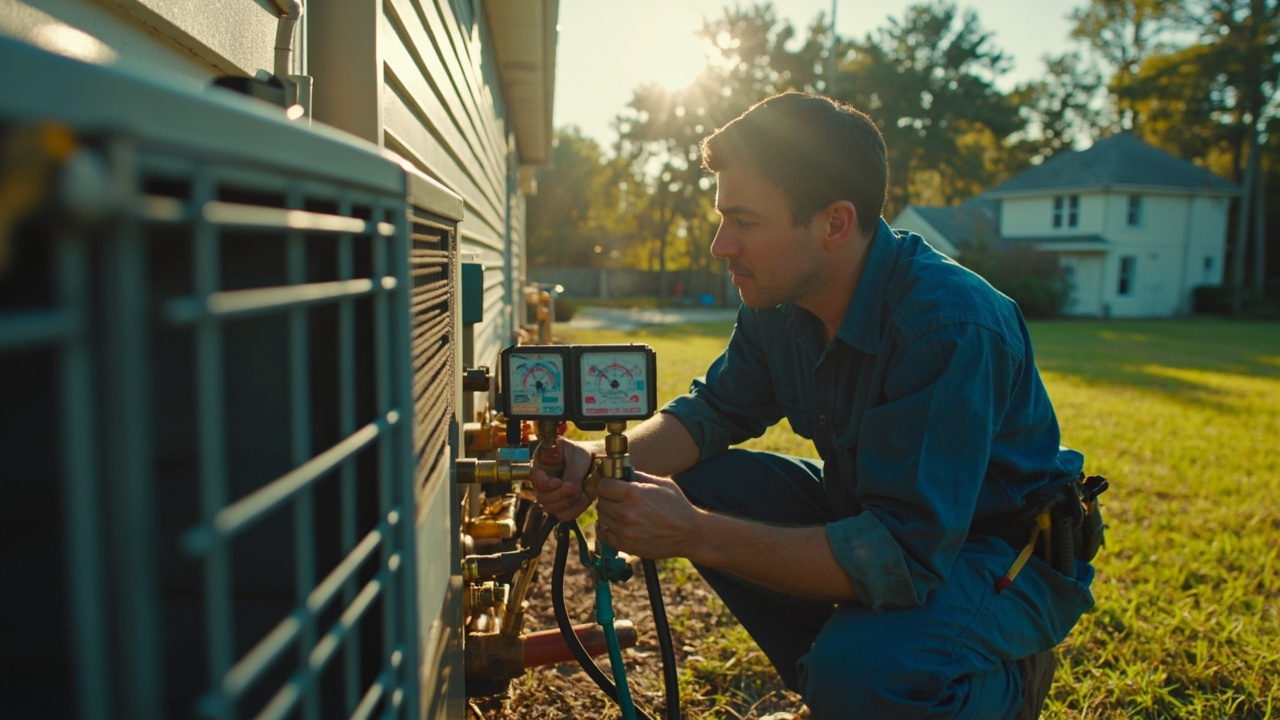

Once airflow is cleared, the return and supply probes go in near the coil and we take the delta T reading, then static pressure against the blower plate, then superheat, subcooling, and amp draw if the first two readings do not already explain the pattern. Each one rules out a branch rather than confirming a guess. If the numbers point at a sizing or staging mismatch instead of a fault, we say so and walk through what a staged system changes before any part gets ordered.
Verification before we leave
Before we pack up, the delta T reading gets taken again with the system running under normal conditions, and it needs to land in the range the equipment is built to hit, not just closer than before. We walk you through what the reading showed and what it decided, and you keep the numbers from both visits so you have a record of what changed and why, rather than a receipt with a part name on it.
Why a sizing call needs someone who has seen it here
A crew that does not work houses in this county tends to read short cycling as a bad compressor and price a swap before checking whether the equipment was ever sized to the house it sits in. Ranch era houses from the 1940s through the 1960s often carry attic duct that was added or resized after the original construction, and setting a modern, higher capacity condenser on that duct without rechecking static pressure reproduces the same short, humid cycle the old unit had, just under a newer nameplate. Brick veneer houses from the 1970s and 1980s carry a related risk from the other direction, with duct board and flex duct that has spent decades in attic heat and now leaks or restricts more than the original design allowed for, so a straight one for one equipment swap on that duct inherits the airflow problem along with the new unit.
Skipping the load calculation is the mistake that surfaces soonest. A replacement priced off the tonnage of the unit coming out, without a fresh calculation against the house and its current duct, tends to land on the same or a larger size than what is failing, and an oversized replacement on marginal duct short cycles from the first afternoon it runs. Crews who work this county's housing stock regularly have usually already seen that pattern enough times to check the duct and run the calculation before a box is quoted, rather than after a callback.
Scheduling across the county during a heat wave means several calls can come in with the same complaint on the same afternoon, since a lot of this older equipment ages out around the same stretch of years. Recognizing a sizing complaint over the phone, rather than discovering it on site after a part has already been ordered, is part of what keeps a short cycling call from turning into two visits instead of one.
More detail on commercial hvac contractors is on its own page.
The U.S. Department of Energy's home heating and cooling guide explains the efficiency math behind our recommendations.
What working with us looks like on this kind of call
Getting a technician out
You call and we ask how long the system runs before it cuts off and whether the air feels cool or just damp, since those two answers usually decide whether this is a same day visit or a scheduled one. You get a window confirmed by phone before anyone leaves for the call, rather than a guess. If the diagnosis ahead of yours runs long, we call to move the window instead of letting you sit waiting past it with no word.
Keeping your home clean
Before the attic hatch or closet panel comes open, drop cloths go down along the path to the air handler and the coil. Any dust or insulation disturbed while pulling probes or a filter comes out with us rather than settling back into the house. Tools stay staged on a mat instead of the floor, and the last thing done before leaving is checking that any panel or hatch opened during the visit is closed and seated the way it was found.
What moves the price
If the fix is a repair, the cost driver is which part failed and how hard it is to reach behind the blower door or up in the attic. If the fix is a sizing correction, the capacity and efficiency tier you choose moves it, and so does whether the indoor coil gets matched to a new outdoor unit or half the system stays in place, since a mismatched pair rarely performs the way the rating suggests. You see the scope in writing, with the reasoning behind it, before anything is ordered or approved.
Who is doing the work
A technician new to short cycling calls rides along on live diagnoses before running one alone, watching how a lead reads the delta T split and decides whether it points at sizing or at a fault. Taking that reading correctly, and knowing when a normal number still hides a duct or staging problem underneath it, is the specific task a lead signs off on. Anything involving a load calculation or a staging decision gets a second set of eyes before the scope goes to you.
You Have Questions,
We Have Answers
Stopping short cycling starts with finding which of three causes is driving it: airflow, sizing, or a control fault. A clogged evaporator coil, a collapsed return, or a filter with high pressure drop can trip the limit or freeze the coil, so those get corrected first. If airflow tests clean, the cause is usually oversizing or a failing capacitor or contactor, and those need meter readings. Replacing parts before the cause is isolated often leaves the same pattern running the next afternoon.
Short cycling is any run that ends before the system completes a normal cycle, typically under five minutes. Watch for repeated starts with only a few minutes of off time between them. A healthy cooling system on a mild day may still run ten to fifteen minutes per cycle. On a furnace, a burner that lights and drops out before the blower finishes its delay counts as well.
A ten-minute cycle can be normal in mild weather, when the house needs little cooling. Cycles that short on a hot afternoon are a warning sign. Check the off time as well. If the unit rests only two or three minutes before restarting, the system is not keeping up or is tripping a safety. Compare the pattern at different outdoor temperatures before deciding.
Call the same day if the unit runs under five minutes, ice shows on the copper line, or the breaker trips. Those signs mean the compressor is taking damage with each start. If the cycles are merely short and the air still feels cool, log the run and off times for a day or two first. Bring that log to the call, because it lets the technician separate a mild sizing issue from a developing fault.
Air feels damp because the coil only removes moisture after it has been cold for several minutes. Short runs stop before condensate begins to drain steadily, and the water left on the coil can evaporate back into the airstream when the blower keeps running. Indoor humidity can then stay well above the comfortable range, often in the sixty percent area, even while the thermostat reads its setpoint. Longer, slower cycles are what pull the moisture out.
Oversizing is a common cause of short cycling, but it is not the only one. An oversized unit cools the air quickly, so the thermostat is satisfied before the house has been dehumidified. A dirty coil, low charge, or a heat-soaked thermostat can look identical. Sizing is confirmed by comparing a load calculation to the installed capacity. If the unit is only a half ton over, the duct and staging usually matter more than the tonnage.
A new thermostat fixes the problem only when the thermostat itself is at fault, such as a sensor reading warm from a hot wall. A differential setting that is too narrow also qualifies. That is the minority of cases. Test it by comparing the thermostat reading to a separate thermometer near the return. If they agree within a degree or two, the fault lies in the equipment, and a larger repair is more likely.
Most short cycling diagnoses take roughly an hour to two hours on site. Observing a full cycle pattern accounts for much of that, because a fault that appears only after fifteen minutes of run time cannot be rushed. Add time if the attic is hot, the duct is hard to reach, or the technician must wait for the coil to thaw before taking readings. Load calculations are usually done separately after the visit.
Granite HVAC Waco is a strong choice if you want the cause measured before any part is quoted. The delta T reading goes on paper before a repair is priced, and each visit closes with a second reading so you can see what changed. A technician also confirms static pressure and amp draw first, rather than assuming a bad compressor. Call (254) 221-8461 and describe how long the system runs before it stops.
Why a humid, long cooling season changes what short cycling means here
McLennan County sits in a humid subtropical climate with a cooling season that opens in spring and runs into October, with July and August pushing outdoor temperatures into the mid to upper nineties for weeks at a stretch. A system built to reach setpoint quickly satisfies the thermostat without running long enough to pull the moisture out of the air, which is exactly the pattern late spring and early summer humidity exposes first, since latent load rises faster than the temperature number the thermostat is reading. That gap between a satisfied thermostat and a house that still feels damp is often the clearest sign the short cycling has a sizing cause rather than a broken part. The thermostat cycles off before dehumidification begins, leaving occupants uncomfortable despite the temperature reading at setpoint.
The Blackland Prairie clay under most of this county shrinks in drought and swells when it rains, and that movement shifts outdoor condenser pads and stresses the line set and condensate connections tied into a slab or a pier and beam floor. A unit that starts level and true can end up slightly off level within a season, which changes how the compressor sits and can introduce the kind of electrical strain that shows up as a cycling complaint even when the sizing and airflow are both correct. Checking pad level is part of ruling that cause out before the equipment itself gets blamed.
HVAC Services in The Waco Area
Explore our service area and locate Granite HVAC Waco with ease. We're proudly local and serve the surrounding neighborhoods with fast response and honest pricing. Use the map to check our coverage area, or call us and we'll confirm in seconds.
Address:
Granite HVAC Waco, Waco, TX, 76701
Changing a filter on schedule and keeping the outdoor unit clear of debris are homeowner jobs. Where it stops is refrigerant, anything behind the blower door, and any load or duct correction, because those require gauges, amp readings, and a manometer to do safely. If we find work outside HVAC, a structural pad issue or a wiring problem in the panel, we say so on the first visit.
Before you call, know roughly how many minutes the system runs before it shuts off and how long it sits idle between starts. Note the temperature of the air and whether moisture is present, and if you know the age of the outdoor unit, have that ready too. Those answers usually tell us whether this needs a visit today or can wait for a scheduled one.
